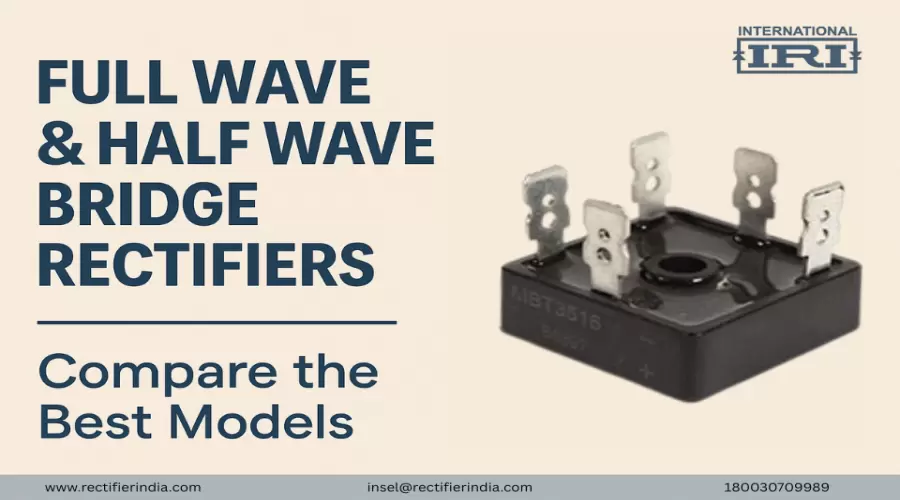

Full Wave & Half Wave Bridge Rectifiers — Compare the Best Models

Conversion of alternating current (AC) to direct current (DC) in the world of electronics is necessary in order to operate the gadgets safely and efficiently. Bridge rectifiers come in at this point. And this is regardless of whether you are an electronics enthusiast, a hobbyist, or a professional engineer, in that knowledge of the difference between a full-wave bridge rectifier and a half-wave bridge rectifier can assist you in making an informed decision when planning your projects. Insel Rectifiers provides the right solutions to both variants, where accuracy and performance are certain.

What Is a Half-Wave Bridge Rectifier?

One of the simplest types of rectification is a half-wave bridge rectifier. It can pass only half of the AC signal, either positive or negative, and reject the other half. It can be stated that this results in the pulsation of the output voltage and a reduced mean DC.

The half-wave design is light and cheap, and thus it can be used in applications where there is low power consumption. It is however, limited in its efficiency and produces more ripple content. For example, if you are powering a small LED circuit or a low-wattage electronic device, a half-wave bridge rectifier from a trusted bridge rectifier manufacturer like Insel Rectifiers can be a practical choice.

Why Choose a Full Wave Bridge Rectifier?

A full-wave bridge rectifier, a half-wave bridge version also makes use of both halves of the AC signal, but converts the half-wave signal to a continuous pulsating DC. This design is very efficient, and it also minimizes the ripple voltage, which is very important when dealing with sensitive electronics. Full-wave rectifiers would be preferred in medium to high power where they are used in power supply units, battery chargers, and industrial equipment. They perform better and offer you the voltage consistency and reduced heat generation, which prolongs the life span of your devices.

Key Differences at a Glance

In choosing between a half-wave bridge and a full-wave bridge, it depends on the following points, however:

·         Efficiency: Full-wave rectifiers have approximately 2-fold the efficiency of half-wave rectifiers.

·         Ripple Voltage: Half-wave rectifiers give larger ripple and need a larger amount of filtering.

·         Use of Transformers: Full-wave rectifiers typically need a center-tap transformer, but may be designed as a bridge (in this case, it may require fewer transformers).

·         Cost and Complexity: Half-wave rectifiers are cheap and easy, and full-wave rectifiers are expensive but offer superior performance.

The comparison of these points is that engineers and hobbyists may choose which rectifier suits the requirements of the project the most.

Applications That Benefit from Each Type

Half-wave bridge rectifiers are typically employed in small power circuits like small-scale electronics, display lights, and simple battery chargers. Conversely, full-wave bridge rectifiers are needed on circuits that need constant DC, such as a power supply module, automotive electronics, and industrial control systems.

Insel Rectifiers produces bridge rectifiers that are of high quality, and they serve both situations. Their parts are put to the test of durability, efficiency, and accurate performance, such that all projects proceed without any issues.

Choosing the Right Bridge Rectifier

The choice of the rectifier is determined by the power needs of your project, the needs of your project in terms of stability of the voltage, and the financial considerations. A half-wave bridge rectifier is adequate when the equipment is small, experimental. For professional-grade electronics or devices that demand reliable power, investing in a full-wave bridge rectifier from a reputable bridge rectifier manufacturer like Insel Rectifiers is wise.

Also, it is necessary to take into account such aspects as maximum current rating, reverse voltage rating, and thermal stability to make sure that the rectifier works best at work.

Final Thoughts

Whether you are refining an amateur circuit or coming up with a complex electronic gadget, it is important to be informed of the distinctions between the full-wave and half-wave bridge rectifiers. Half-wave models are cheap and easy to use like a bridge rectifier, but full-wave bridge rectifiers are more efficient, smoother, and reliable when used in sensitive applications.

With a wide selection of full-wave bridge rectifier or half-wave bridge rectifier models, Insel rectifiers will get you the ideal solution to your project. Power that matters and other products. They are electronics that are designed to handle the power demands of your devices with accuracy, stability, type, and performance-because each of your devices has the right power solution.
